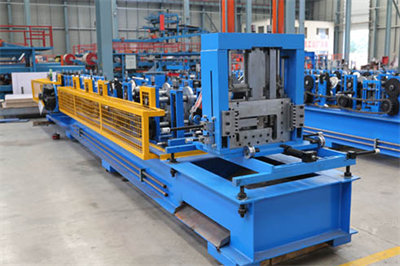

C/Z Purlin interchangeable Roll Forming Machine

Zhongji C/Z purlin interchangeable Roll Forming Machine adopting integrated adjustment with unique design can provide quick, infinite size change and C rapid shape roller to Z shape roller change, which simplifies the process of it.

Producing Process Sketch:

Technological Process:

Uncoiling—Feeding—Leveling—Pre-punching &Pre-cutting—Roll forming—Products collecting Main Technical Specifications of C/Z Purlin interchangeable Roll Forming Machine:

Number	Items	Unit\Type	RF-FD
1	Purlin specification	mm	100-300
2	Steel Thickness	mm	1.6-3.0
3	Forming Speed	m/min	10-12
4	Roller stands	stand	20
5	Material of roller		GCr15
6	Main Motor Power	Kw	15
7	Hydraulic Power	Kw	11
8	Hydraulic pressure Mpa	Mpa	15-20
9	Power Supply		380V, 50HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12
12	Control system		PLC with touch screen
13	Machine net weight	T	14
