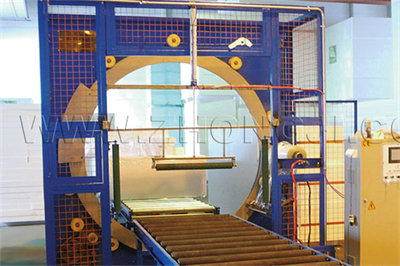

EPS Wrapping machine

Main Technical Specifications of EPS Wrapping machine:

Number	Items	Type \Unit	EPSWM-B
1	Product Dimension	mm	3000~12000x600~1250
2	Max diagonal size	mm	1600
3	Wrapping film width	mm	250~500
4	Wrapping film thickness	um	18~30
5	Wrapping Speed	r/min	0~25
6	Power Supply	kw	3
7	Max. Contour Size	mm	1800X2860X4400
8	Machine Net Weight	kg	1860

Main Features of EPS Wrapping machine:
1.This machine uses the PLC (Programmable Logic Controller) and Computer Touch Screen to accomplish the automatic recycling process of pushing the product into the working position, wrapping,packaging, sealing, and putting onto the roller, etc;
2. Integrate the electrical control to automaticallay control and enhance the number of rounds of packaging of EPS blocks from head to tail;
3. The height of the front and back rollers to the floor of the Wrapping Machine depends on the customers’ requirements;
4. Can achieve face(side) packaging, and has automatic clipping and cutting plastic films system.
