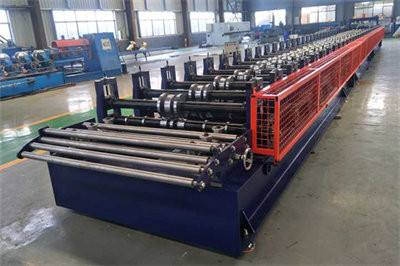

Floor Deck Roll Forming Machine

Main Features of Floor Deck Roll Forming Machine:
Steel structural floor panel is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. Zhongji series steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming.

Producing Process Sketch of Floor Deck Roll Forming Machine:

Technological Process of Floor Deck Roll Forming Machine:

Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting

Main Technical Specifications of Floor Deck Roll Forming Machine:

Number	Items	Unit\Type	RF-FD
1	Steel Thickness	mm	0.8-1.2
2	Steel feeding width	mm	1000-1250
3	Forming Speed	m/min	10-15
4	Roller stands	stand	30-36
5	Roller Material		45# steel, coated with chrome
6	Hydraulic cutting Power	Kw	18
7	Hydraulic pressure	Kw	5
8	Hydraulic pressure Mpa	Mpa	12
9	Power Supply		380V, 50HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12
12	Control system		PLC with touch screen
13	Machine net weight	T	16
