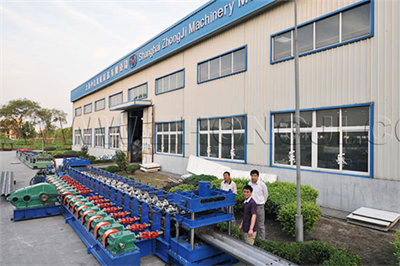

Guard Rail Roll Forming Machine

Zhongji Glazed tile roll forming machine can provide various tile with steady and polish surface, which are used to construct curvaceous roofs. This highly accurate machine series adapted with PLC and adjustable node length more than 120mm.

  • 1. Zhongji Glazed tile roll forming machine can provide various tile with steady and polish surface, which are used to construct curvaceous roofs. This highly accurate machine series adapted with PLC and adjustable node length more than 120mm;
  • 2. Technological Process of Guard Rail Roll Forming Machine: Uncoiling—Feeding—Leveling—Punching—Roll forming—Cutting—Products collecting.
NO. Items Type/Unit RF-GT
1 Steel Thickness mm 0.5-0.6
2 Forming Speed m/min 2-4
3 Roller stands stand 16
4 Roller Material 45# steel, coated with chrome
5 Main Motor Power Kw 5.5
6 Hydraulic cutting Power Kw 4
7 Hydraulic pressure Mpa 10-12
8 Power Supply 380V, 50HZ,3 phase
9 Tolerance mm 1.5
10 Material of cutting Cr12
11 Control system PLC with touch screen
12 Machine net weight T 12

Shanghai Zhongji Machinery Manufacturing Co., Ltd. (ZJM) professional design and manufacture of new metal roof, the wall molding equipment, a professional manufacturer specializing in the production of color-coated steel machinery, color steel tile machinery, color steel composite board machinery, color steel sandwich panel machinery, as well as colorsteel tile roll forming machine, color steel insulation composite sandwich panel equipment.
