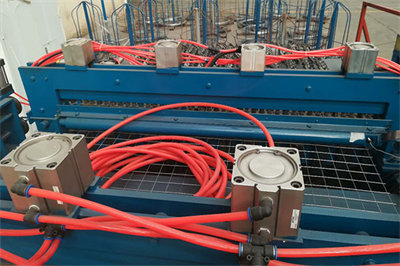

Steel Wire Mesh Welding Machine

The Welding Machine welds the horizontal and vertical wires to form a steel wire mesh. Mesh Width: 1200mm, Grid size: 50 x 50mm or 50 x 100mm;PLC control system to automatically straightens, welds and cuts the steel wire;The A type machine has the mechanical transmission system.

  • 1. The Welding Machine welds the horizontal and vertical wires to form a steel wire mesh. Mesh Width: 1200mm, Grid size: 50 x 50mm or 50 x 100mm.
  • 2. PLC control system to automatically straightens, welds and cuts the steel wire;The A type machine has the mechanical transmission system.
  • 3. The B type machine makes use of the integrated pneumatic system to ensure that the operation is stable, high reliability and long life span of the equipment.
  • 4. The horizontal steel wires use the integrated straightening and cutting system to ensure stable operation and high accuracy.
  • 5. The Automatic Alarm Device is easy to operate and maintenance,Will automatically cut the steel wire mesh according the pre-set mesh length.
NO. Items Type/Unit 3D-MW-3B 3D-MW-4B
1 Production Capacity M2/hr 80 70
2 Welding Intensity N Pull-off force for
each spot≥350
Pull-off force for
each spot≥700
3 Mesh Longitudinal Error mm ≤±0.2 ≤±0.2
4 Welding Defect Rate % ≤1 ≤1
5 Steel Wire Diameter mm 2.0-3.0 2.0-4.0
6 Power Supply   380V, 50Hz, 60KVA 380V, 50Hz, 75KVA
7 Max. Outer Dimension mm 15800x2780x1500 15800x2780x1500
8 Machine Net Weight kg 2800 3000

3D panel is widely used in temporary houses, small villas, small plant construction, has good thermal insulation properties, has good market prospects.
